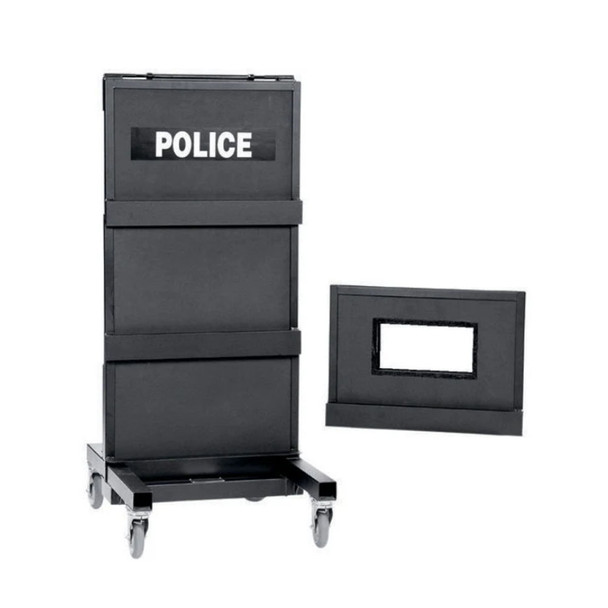

Protech Phoenix IV Type IV Ballistic Shield 24x48 | Heavy-Duty Ceramic/Polyethylene Protection with Wheel Base (Optional Viewport Panels)

The PROTECH® Tactical Phoenix IV™ is an NIJ 0108.01 Type IV ballistic shield engineered to defeat the 7.62mm, 166 gr. armor-piercing .30-06 round. This heavy-duty shield is constructed from a ceramic/polyethylene composite covered with an aluminum skin and features a flat design with an ambidextrous horizontal handle.

The Phoenix IV comes standard with three opaque ballistic panels and a base and wheel assembly with a welded platform that locks into stationary positions. Measuring approximately 24" x 48" and weighing about 157 lbs (with the three standard panels), it provides substantial coverage for high-threat environments. Optional additional panels (opaque or with viewport) are available separately to expand protection as needed.

Key Specifications & Features

• NIJ 0108.01 Type IV rated
  • Defeats 7.62 x 51mm, 147 gr. FMJ (NATO) (M80) and armor-piercing threats including 7.62mm 166 gr. AP .30-06
• Approximate size:
  • Phoenix IV (includes 3 panels): 24" x 48"
  • Optional additional panels: 24" x 17" each (sold separately)
• Approximate weights:
  • Phoenix IV (includes 3 panels + wheel base): 157 lbs
  • Optional Opaque Panel: 50 lbs
  • Optional Panel with Viewport: 65 lbs
• Ceramic/polyethylene composite with aluminum skin
• Flat design with ambidextrous horizontal handle
• Base and wheel assembly with welded locking platform
• Optional viewport panel features 6" x 12" viewport (sold separately)
• Compatible with FoxFury® Taker B50™ light system

The PROTECH® Phoenix IV™ is designed for tactical teams requiring maximum Type IV protection in a mobile, wheeled platform. Ideal for high-threat scenarios where armor-piercing threats are a concern.

LE/MIL- Restricted item - special order only, 4–6 week lead time.
