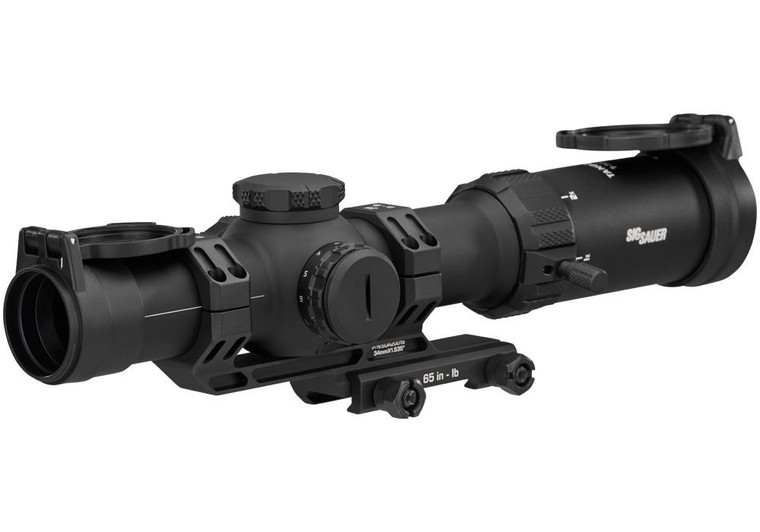

FEATURES:
- High Performance 10x optical system with low dispersion glass
- Integrated thread-in throw leaver for quick magnification changes
- Illuminated MSR BDC-10 reticle with 11x brightness levels
- Lay flat flip-back lens covers included
- Dependable waterproof, shockproof, and fog-proof performance
- Includes ALPHA-MSR one-piece aluminum cantilever mount
Specifications
| Magnification | 1-10x |
|---|---|
| Objective Lens Diameter | 26 mm |
| Overall Length | 11 IN |
| Weight | 21.9 oz |
| Illumination Settings | 11 |
| Maintube Diameter | 34mm |
| Total Elevation Travel | 100 MOA |
| Total Windage Travel | 100 MOA |
| Travel Per Rotation | 44 MOA |
| Eye Relief Low (IN) | 3.54 |
| Eye Relief High (IN) | 3.22 |
| Field of View Low (FT @ 100 Yards) | 120 |
| Field of View High (FT @ 100 Yards) | 12 |
| Diopter Adjustment Range | +/- 2.5 |
| Objective Outer Diameter | 34 MM |
| Mount Included | Yes |
| Mount Type | Integral Mount |
| Battery | (1) CR2032 |
| Focal Plane | First |
| Reticle | MSR BDC10 |
| Illumination | Yes |
