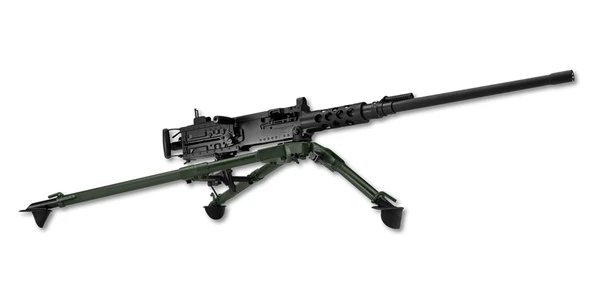

FN M2HB-QCB .50-Caliber Belt-Fed Machine Gun w/ Stellite Barrel
Tracing its origins back to the closing days of WWI, the legendary M2 50-caliber heavy machine gun was one of John M. Browning’s greatest military designs. At the request of U.S. General John “Black Jack” Pershing, John M. Browning scaled-up his M1919 30-caliber platform to become the original rapid fire anti-tank weapon. From its initial development in late 1918, the Browning M2 has played a pivotal role in ground, air, and sea engagements during WWII, Korea, and Vietnam. It remains in use today by all branches of the U.S. Military and by many of her allies. The M2’s recoil operated design offers simplicity, relentless reliability, outstanding accuracy, and tremendous durability. FN’s Quick Change Barrel (QCB) system simplifies barrel changes under combat conditions.
Specifications:
- Caliber: .50
- Operation: Open-bolt
- Weight: 84 lb.
- Barrel Length: 45"
- Overall Length: 65.1"
- Height: 7.6"
- Effective Range: 1,850m, area target
- Maximum Range: 6,500m, grazing fire
- Trigger Pull: 26 - 42.77 lb.
- Trigger Pull: .3" to discharge
- Twist Rate: 1:15 RH
RECEIVER:
Solid steel frame for durability
Projected weapon service life in excess of 100,000 rounds
BARREL:
Hammer-forged steel
18,000-round service life high temperature resistant alloy barrel
10,000-round service life, chrome barrel
Quick Change Barrel (QCB) feature allows the barrel to be quickly exchanged by one operator and eliminates the need to check and adjust headspace and timing at the user level
FN® M2HB-QCB is compatible with any and all FN QCB barrels
MOUNT:
Adjustable M3 ground mount tripod with traversing and elevation mechanism to provide accurate fire on pre-established targets
Weapon is compatible with numerous armored vehicle and naval craft mounts
OPERATING CONTROLS:
Dual spade grips for enhanced control in burst and sustained fire
Right-hand cocking handle for easy operator access
Trigger safety system
FEED SYSTEM:
NATO standard .50-caliber belt linked ammunition
Left-hand or right-hand belt feed design readily adapts to variety of mounting positions and available space
Left-hand or right-hand fired link ejection
Bottom fired case ejection
M2HB QCB Modification Kit:
Includes two barrels, guide sleeve shims, barrel extensions, breech locks, and all miscellaneous small parts required for the modification
Compatible with any U.S. Mil-Spec M2HB
